Designed to replace the crystal oscillator LO chain in a 2304MHz Transverter unit, the Model 2160-ALN provides superior low noise performance almost equaling the Phase Noise performance of a crystal oscillator/multiplier chain. Now there is an alternative to the unstable crystal oscillator chain that drifts constantly. The Model 2160-ALN allows precise receiver/transmitter frequency control using a stable external 10 MHz or 100 MHz reference oscillator like a TCXO, Oven Controlled Oscillator or a Rubidium Oscillator. The Model 2160-ALN outputs a single ultra low noise 2160 MHz signal. With a minimum of +17 dBm of output power, the oscillator is perfect for driving 3-dB power spliiters, multipliers and power amplifier stages. The ultra low noise performance of the Model 2160-ALN begins to approach crystal oscillator phase noise performance. This allows the unit to be used for such things as EME communications, long-haul low noise communications and digital operations like JT65 and similar modes. With both end of a communications link using a Model 2160-ALN, both stations will be absolutly on the same frequency when locked to a 10 MHz GPS disiplined oscillator reference. No more hunting around the dial for the other station.

NOTE: Custom frequencies are available on special order. Consult JWM Engineering Group for information and pricing.

• 13.5 Vdc @ 140ma typical, designed for battery/remote operations
• 10 MHz or 100 MHz Reference Frequency input
• +17 dBm RF output minimum, (+18dBm typical)
• Harmonic are > -30dBc below fundamental
• Phase Noise -75 dBc/Hz @ 1KHz typical
• Phase Noise -107 dBc/Hz @ 10KHz typical
• Phase Noise -133 dBc/Hz @ 100KHz typical
• Reference Spurs > -150 dBc
• Operating Temperature Range -20 Deg C to +80 Deg C
• External Lock Signal output provided
• Small size - 3.75" Long x 1.75" wide x 0.89" high
• Full 1 Year limited warranty

• Price $294.95 (plus shipping & handling) - Stock to 2 weeks, Note: CA residence pay local Sales Tax

Link to ->On-line Model 2160-ALN Manual

Link to -> Model 2160-ALN Phase Noise Measurement Plot

Important Note to International Customers Only
When you place your initial order by Credit Card, you will receive an EMail verifying your order placed through our Secure Website at Verisign. When the order department at JWM Engineering receives your order, they will compute the required shipping and handling charges for your country, and EMail back to you the necessary charges to complete your order, and a Weblink you need to go to finish up the shipping charges. JWM Engineering Group only charges for shipping and handling. You are responsible for Duties, Taxes, Tariffs, and/or Consumption for your country of origin. We typically ship overseas orders by US Postal Service. Please use the shipping option "Outside USA" in the shipping cart as your shipping choice. This is only for customers outside the Continental US.

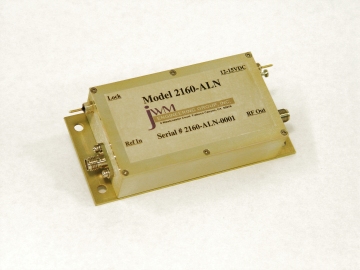

Model 2160-ALN Phase Locked Oscillator
